PI FCCL

Flexible CCL-PI Copper Clad Lamiante



Product Part Number System		Thickness of the materials
PI	Polyimide  Film	12.5μm,25μm,50μm  (0.5mil ,1mils,2mils )
ED CU	Electrolytic copper	18μm ,35μm &70μm (0.5,1.0,2.0 Oz/SF)
RA CU	Rolled copper
AD	Modified epoxy adhesive	Transparent   12.5μm -20.3μm

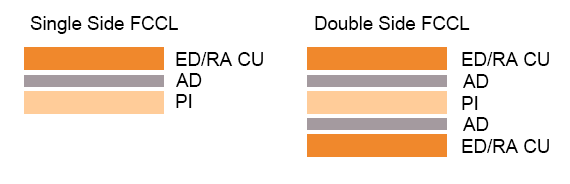

Structure		(D) Single Side FCCL ,(D) Double Side FCCL

For example : LPI2520RA35/S-500 means 25μm (1mils) Polyimide film Laminate with 35μm(1oz) RA Cu ,Single side ;Jumbo width in 500mm

Features :Halogen Fress ,meet the RoHS 2.0 ;Excellent Peel strength  ;Good dimension stability .

Application : Digital Communications , Personal Computer ,Auomotive elextronics and office automation etc.

Package : standard roll :25 or 50 square maters ,width :250mm ,or 500mm Length 100m ; Inner diameters Core : 76mm (3 inches ) or 152mm (6 inches ).packed in carton . other width can be negotiated according to sustomer requirements ;
